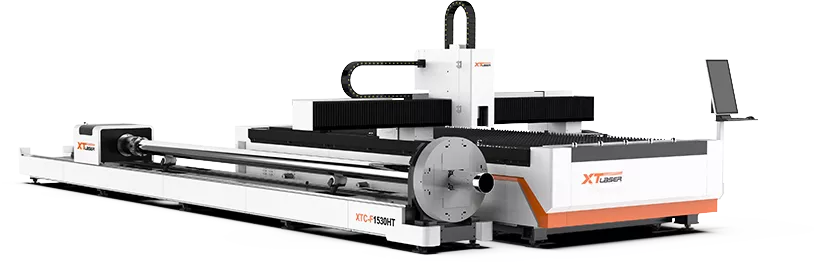

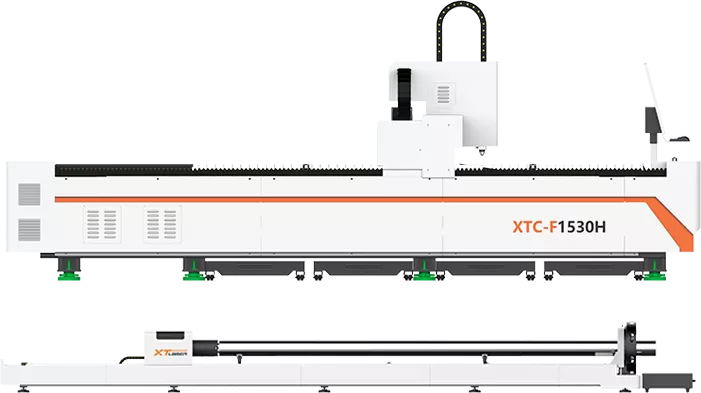

CORTE POR LÁSER, CHAPA/TUBOS – SERIE HT
Descripción corta
- Plataforma única/ Chapa Tubos 1000W-4000W.

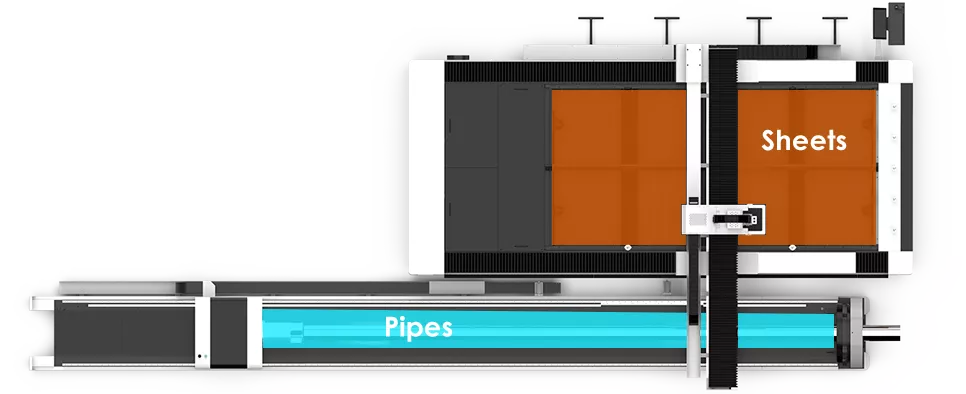

- Una máquina con dos funciones.
- Sistema CNC Inteligente.
- Mandriles Neumáticos Dobles.
- Estructura abierta, carga y descarga convenientes.
| Model | XT-H1530T | XT-H1545T | XT-H2040T | XT-H2060T |
| Working Area | 1530×3050mm | 1530×4550mm | 2030×4050mm | 2030×6050mm |
| Max Linkage Speed | 140m/min | 140m/min | 140m/min | 140m/min |
| Max Acceleration | 1.5G | 1.5G | 1.5G | 1.5G |
| Positional Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| Re-positional Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Pipe Section Shape | Round/Square Tube/Rectangular | Round/Square Tube/Rectangular | Round/Square Tube/Rectangular | Round/Square Tube/Rectangular |
| Tube Size Range (Dual Pneumatic) | T160：Round:Φ16-Φ155mm Square：□16-□155mm Rectangular:Long Side≤155mm T220: Round:Φ20-Φ220mm Square：□20-□220m Rectangular:Long Side≤220mm |
T160：Round:Φ16-Φ155mm Square:□16-□155mm Rectangular：Long Side≤155mm T220: Round：Φ20-Φ220mm Square：□20-□220m Rectangular：Long Side≤220mm |
T160：Round:Φ16-Φ155mm Square:16-□155mm Rectangular:Long Side≤155mm T220: Round:Φ20-Φ220mm Square：□20-□220m Rectangular：Long Side≤220mm |
T160：Round:Φ16-Φ155mm Square:□16-□155mm Rectangular:Long Side≤155mm T220: Round:Φ20-Φ220mm Square：□20-□220m Rectangular：Long Side≤220mm |
